Special note: the standard configuration list without a lock (power supply, wireless remote control to open the door, the alarm horn, please look at the detailed configuration configuration list map)
Lock can not directly use the 220V AC, 12V DC power supply can be used to
The outdoor shield part is waterproof, installed in the mosaic glass glue at the recommended management portal, the effect is better!!!

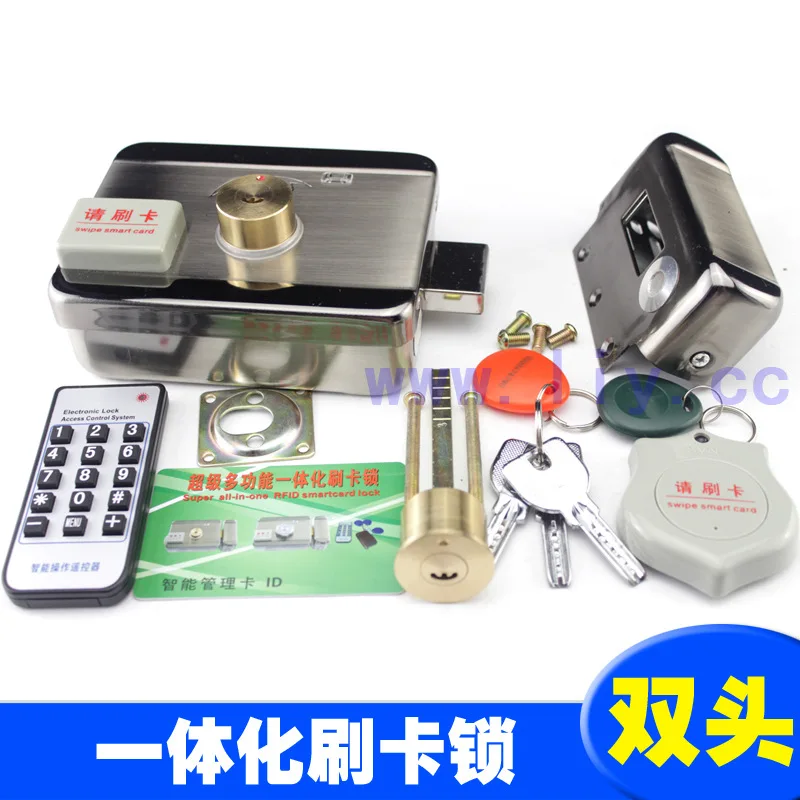

Single / double head following accessories are the same: induction shield 1, copper mechanical lock 1, crescent machinery 3 keys and intelligent operation remote controller 1 (add and delete key) management card 1 (quick add and delete card) 2 ID gift card, warranty card, install the screws (for each customer installation, installation screws required from the distribution)
Double head lock: import and export all need to swipe card or mechanical key to unlock.
Single lock: door swipe or mechanical key to open the door, the door can also be used to lock the card can be a direct lock.
Single / double headed external size is the same:
About installation: Recommended professional installation master installation!
1, try not to use the electric installation, if welding installation, please lock the door out, in order to avoid high temperature demagnetization deformation, should be used when welding spot welding, and welding with wet cooling, etc. to complete after cooling to power debugging.
2, before installation of lock, the lock tongue to maintain the level, otherwise it will cause the lock not normally locked.
3, before and after the card reader to be able to read at the same time to read the card, to protect the line when the line is to protect the head, preferably with sheath protection.
The following is the ID single head lock installation diagram for pro reference:
Please note: the remote control and ID card are required to buy the other.
The blacksmith needs its own hardware, we look at the pictures inside the factory, not the general process can be done!
