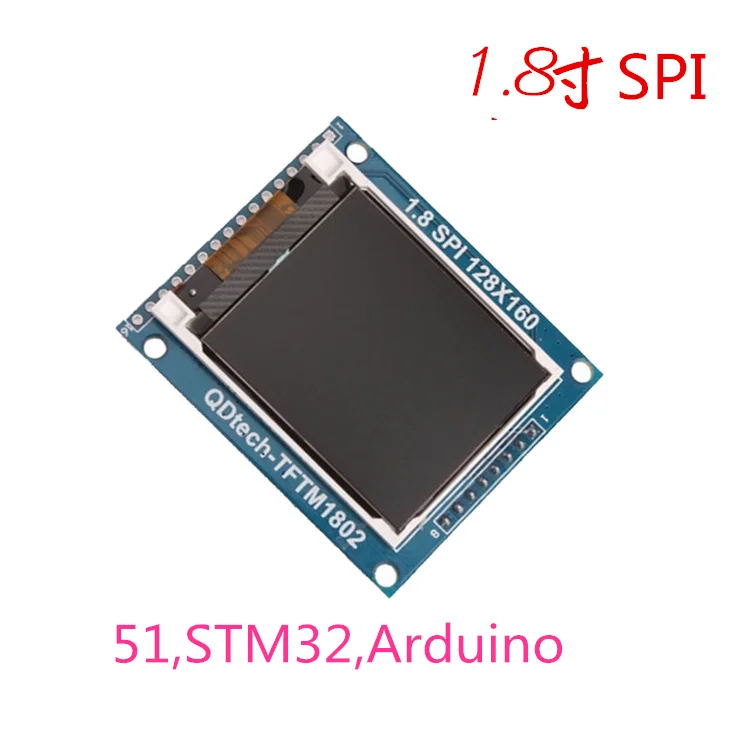

Free Shipping 5pcs/lot 1.8inch Color LCD Screen modules 1.8 SPI LCD Modules
QD-TFT180 Series module features:
Module with voltage regulator IC supports 3.2V/5V power supply,
With SD card, you can do digital photo frames and other experiments,
Module reserved Nokia3310/5110 interface, support 1602 interfaces directly with the line
The most streamlined wiring IO ( least used only three IO)
1.RST– directly to the microcontroller reset signal terminal then this IO can save
2.D/C– then low, long-term effective chip select this IO can save
3.D/C– then select IO control register
4.DIN-IO access control data transmission
5.CLK-IO access control SPI bus
6.BL- access high-chip 3.3V lit backlight This IO can save
Standard wiring used IO: (6 IO)
1.RST– IO access control LCD reset
2.CE– contact IO control chip select
3.D / C– then select IO control register
4.DIN– IO access control data transmission
5.CLK– IO access control SPI bus
6.BL– connected IO control back light off or PWM brightness control
LCD screen parameters:
Driver IC: ILI9163 / ST7735 ( please tell us which kind of driver IC you will use )
Provide a full range of information:
1. LCD screen Specification
2. LCD module Schematic Reference
3. LCD Protel99SE package library
4.C51 comprehensive test source (scraper, English, images, support software and hardware SPI)
5.STM32 comprehensive test source (scraper, English display, Chinese display, picture display, support software and hardware
6.Arduino source (integrated GUI testing, powerful)
7. Provide technical support bottom-driven
