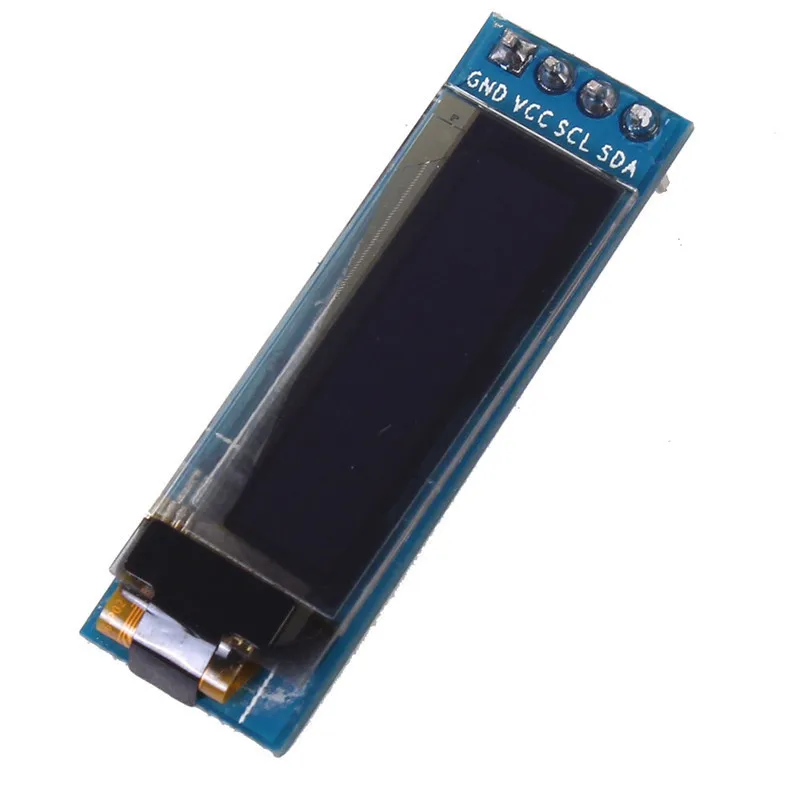

0.91″ 0.91inch OLED Display For Arduino White Blue 128×32 OLED LCD IIC I2C Serial 4PIN 3.3-5V SSD1306 Driver IC Breakout Module
- Tiny 128×32 is a OLED Display based on SSD1306 Display controller chip. The display is mounted on an easy to solder PCB. The SSD1306 Display interfaces to microcontrollers through a I2C serial bus interface.
- OLED Technology, Self-luminous, need no back-light (consumes less energy)
- High resolution: 128 * 32
- Viewing angle:> 160 degree
- Supports various microcontrollers: Fully compatible For Raspberry Pi, Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
- Ultra-low power consumption: full screen lit 0.08W
- Operating Voltage: DC 3.3 ~5v
- Working Temperature: :-30 ~70 celcius
- Module Size: 38.0MM * 11.9MM * 3.9MM (excluding header height)
- I2C/IIC Interface, needs only 2 IO pins.
- 4.7k pull-up resistors are needed on both SDA and SCL lines.
- Driver IC: SSD1306
- Pixel color: White / blue
- VCC (DC 3.3 ~5v)
- Documents and Downloads
- SSD1306 Display Controller Datasheet
- For Arduino Library
- Adafruit SSD1306 library also install Adafruit GFX library
- ARM Library
- AVR Library
- Important Note
- Make sure you are correctly setting the contrast value of the LCD (by writing to command register ) or you will be able to see very dim or nothing at all on the LCD.
- When you are using u8glib, please make sure that you un-comment following statement : //U8GLIB_SSD1306_128X32 u8g(U8G_I2C_OPT_NONE|U8G_I2C_OPT_DEV_0); // I2C / TWI
- In case of connection with NodeMCU Modules please follow following default pinouts with Adafruit library : I2C-SDA – D2/GPIO4,I2C-SCL – D1/GPIO5
1pcs DIY 0.91″ OLED Display For Arduino 128×32 OLED LCD LED Display IIC I2C Serial 4PIN 3.3-5V SSD1306 Driver IC Breakout Board
