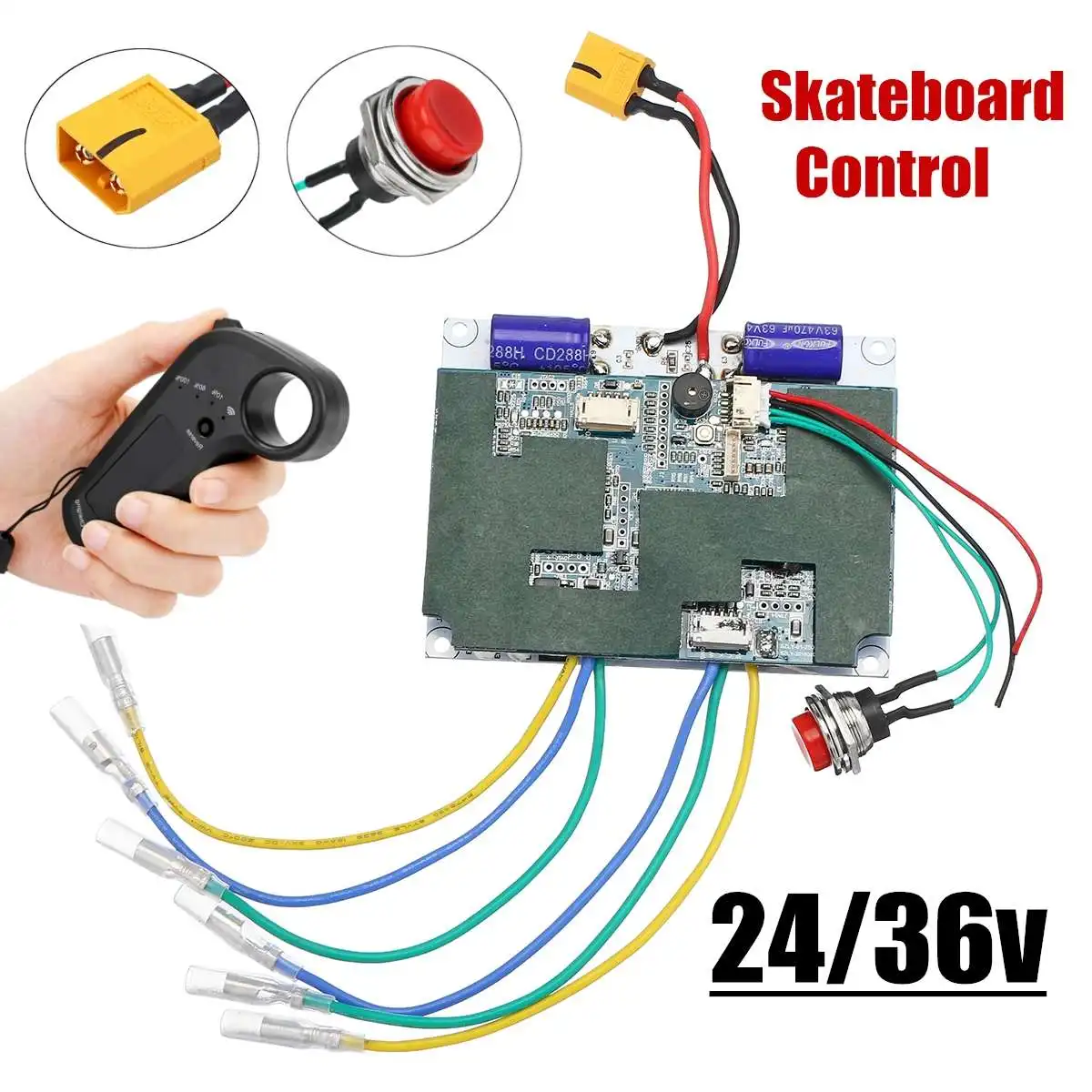

Patterns: 24/36v (optional)
Maximum power: 290W (24V) / 430W (36V)
Drive Mode: dual system drive
Sensing Method: Hall
Material: Electronic components and aluminum sheets
Size: (L)X(W) 105X80X15mm /4.13”X3.15”X0.59″(appr.)
Application Areas: scooters, wheelbarrows, twisting cars, balancing vehicles
Protection: overvoltage, undervoltage, overtemperature, stall, CW\CCW, speed control
● Electromagnetic brake.
● One button positive/ reverse.
● Can be used as a spare parts.
● High, medium and low speed selection.
● Wireless 2.4G remote control transmission control, 8 meters effective distance.
● Dual motor electric longboard skateboard control modula with remote can do as ESC do, would be more stable.
● Both the controller and the remote control have been connected to the code before shipment. You can use the remote control without any additional code.
【Wireless Controller Operating Instructions】
1. Controller startup mode: The controller is equipped with a switch button with two wires, and this switch is inserted. After the control panel is powered on, press this switch to hear a drop of sound, and the red light on the control panel flashes, indicating that the control panel has started. Close the control panel in the same way as above, and press it again.
2. Connection mode between the control board and the motor: The three thick wires with the rubber head on the motor are the power wires, and the five thin wires that are side by side are the Hall sensing wires. For ease of operation, this controller is set to dual drive mode. Only connect the motor and the three thick wires on the drive board separately (the connection order is free to connect, no corresponding), there is no need to connect five thin wires (Hall line), and the motor can be smoothly started and stop by the remote control
3. The five thin wires (Hall wire) on the motor are for you to connect to other controllers. If you need thin wires, the advantage of this controller is that you do not connect the thin line, it can also be controlled well, more convenient to use, low fault rate. It is suggested that hall should not be connected during the test. If the motor is stuck or does not turn when the test is started, the connection mode of two power cords can be arbitrarily switched among the three power cords
4. Precautions: When the controller is powered on, do not touch the front of the controller board with hands. Do not use any metal to contact the top. It is easy to cause the short circuit to burn out the control board. Don’t let the exposed circuit board components on the front of the board have metal or liquid in between, which is also easy to short circuit board, which will also cause short circuit on the board.
5. Wireless remote control and control panel connection operation:
★ When the control panel is connected to the power supply, first press the power key on the control panel to open it, and the red light on the control panel flashes to prove that the control panel has started.
★ Then open the power key on the remote control, and press the forward/reverse switch button on the remote control at the same time. The remote control indicator flashes. At this time, the remote control has been turned on. Under normal circumstances, Both the controller and the remote control have been connected to the code before shipment, and the remote control can be operated without having to code again.
6. Pair code mode: After the control board and the remote control’s switch key are turned on. Close the remote control to the control panel, first press the code button on the control panel, and press the code button on the remote control. At this time, the light on the control panel changes from fast flashing to regular flashing to prove that the code is successful.
1 Pcs Controller Board
1 Pcs Black Remote
Please allow 1-3mm error due to manual measurement and make sure you do not mind before ordering.
Please understand that colors may exist chromatic aberration as the different placement of pictures
