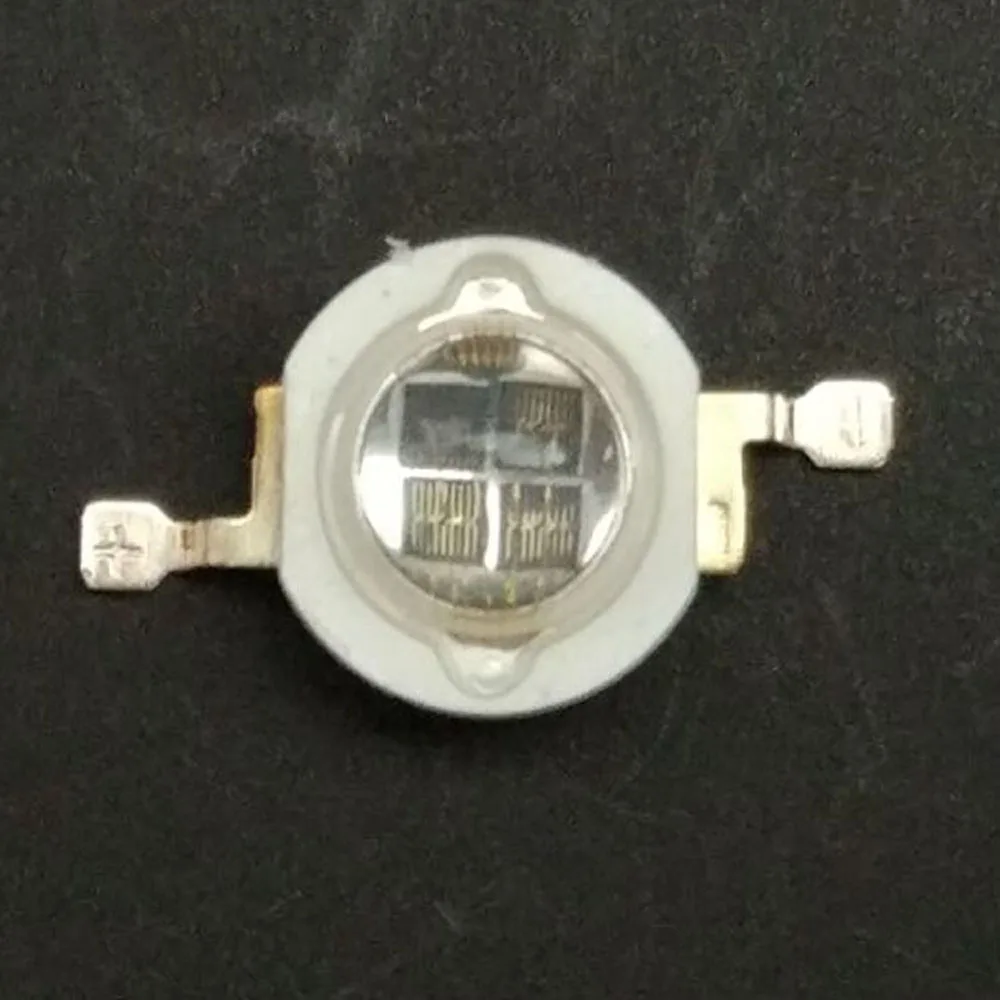

4 chips 5W 940nm infrared led
High radiant intensity
Chip Material: GaAlAs Lens Color: Water clear Source Color: Infrared
1. All dimensions are in millimeters.
2. Tolerance is ±0.25mm unless otherwise noted.
3. Protruded resin under flange is 1.0mm max.
Electrical / Optical Characteristics at TA=25℃
Parameter Symbol Min. Typ. Max. Unit Test Condition Luminous Intensity Φ 2000 2250 2500 mw IF =1400mA Viewing Angle 2θ1/2 140 deg IF =1400mA Domain Wavelength Tc K IF =1400mA Spectral Line Half-Width Δλ 940 nm IF =1400mA Forward Voltage VF 1.50 1.60 1.70 V IF =1400mA Reverse Current IR 20 μA VR = 5V Absolute Maximum Ratings at TA=25℃ Parameter Maximum Rating Power Dissipation 5W Peak Forward Current 2000mA (1/10 Duty Cycle, 0.1ms Pulse Width) Continuous Forward Current 1400MA Derating Linear From 30℃ 0.8mA/℃ Reverse Voltage 5V Operating Temperature Range -20℃ to + 80℃ Storage Temperature Range -30℃ to + 100℃ Lead Soldering Temperature 260℃ for 5 Seconds [1.6mm(.063″) From Body]
- 3 years
Emitted Color: Infrared IR
Viewing angle: 120 degrees.
Second lens :optional 5/9/15/30/45/60/80/90/120 degrees
Applied for : IR Camera, remote control
