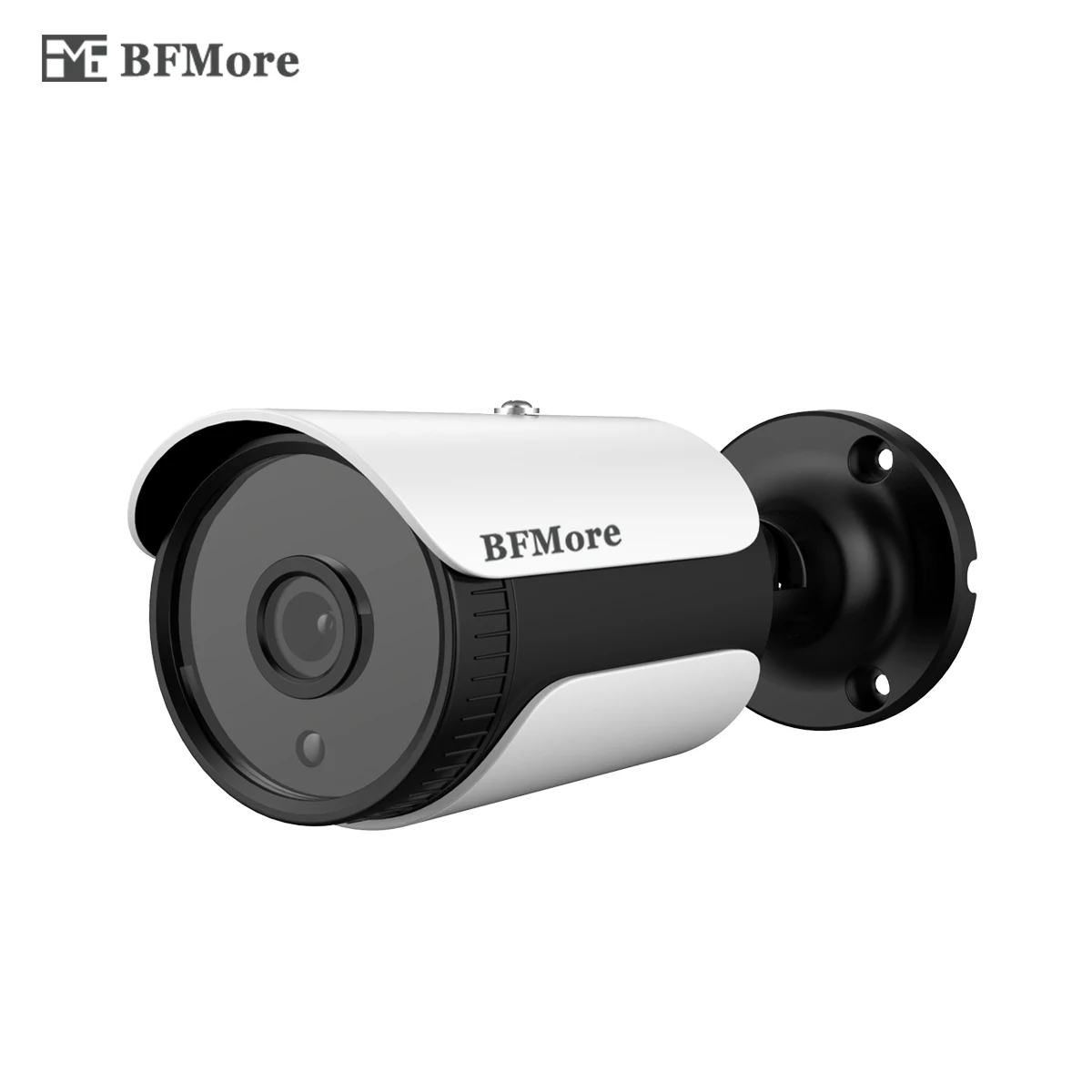

BFM40XM-P H.265 4.0MP IP Camera * 1
User Manual CD *1
•Waterproof IP67 for outdoor/indoor use.
•Support 2D/3D noise reduction,digital wide dynamic
•Super low rate,high definition quality of image;
•Advanced H.265/H.264 video compression
•Professional anti-lightning,conform to GB/T17626.5 and IEC61000-4-5。
•Motion Detection alarm can send alerts through e-mail or FTP.
•Support various network protocols: RTSP, Onvif , HTTP, DDNS, DHCP, etc.
•ONVIF and RTSP protocol support.
•Software CMS(PC) XMEYE(APP)
•IR Distance 30-35m
•Operating Conditions -40C ~ 55C Humidity 95% or less
PoE Makes Easier Wiring and Installation
The Power over Ethernet (PoE) is an advanced technology, which enables you to use a single network cable for both video and power transmission. Therefore, BFM40XM-P PoE HD security IP camera makes the wiring simplified and installation easier. The best choice for DIY enthusiasts!
5.0MP UHD lens
Bring you a clearer picture.
3.6mm lens default of this camera. If you want change the other lens, please leave a message.can choose 2.8mm,6mm, 8mm.
|Detailsof the Lens|
Remote Viewing, Anytime, from Anywhere
No matter where you are, you can remotely access the camera to see live streaming and stay connected.
Remotely view the camera via: free XMeye App on your mobile device, free CMS Client on your computer, web browsers (IE, Google Chrome, Microsoft Edge, Safari, Firefox, etc.)
Whenever a danger is detected, the camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device.
Connect to POE Switch
Connect to POE NVR
|Image Sensor||1/3″ OV4689 low illumination CMOS|
|Lens||2.8mm,3.6mm (by default), 6mm, 8mm|
|Recognition Distance||30-35 Meters|
|IR Cut Switch||Support|
|Power Consumption||48V POE|
|Noise reduction||Support 2D/3D|
|Wide dynamic||Support DWDR;|
Main stream:4MP 2560*1440 25fps, 3MP 2048*1536 25fps;
Sub-stream: 704*576 15fps
|Stream Compression||0.1M~10Mpbsvariable;1~30f/s variable|
|Network||Interface||1x RJ45, 10/100M self-adaption|
|P2P Remote Access||Support|
|Functions||MotionDetection||Support(When using NVR, needs private protocol)|
|User Management||Provide rights management. Support changing log-in user name and password.|
Q:What’s the default ip address of the camera ?
If it shows”Can not find the Device”, that is because the default ip address and router are not in the same gateway.
Kindly click “Edit Device” to change the camera’s ip address,
If your router’s ip address is 192.168.0.1, then you need to change the camera’s ip address to 192.168.0.XX.
“Device Manage”has 3 functions: find,change the IP address and upgrade the firmware.
Q:Which web browser to choose?
Due to the plug-in problem ,only IE supports Multi Languages . Chrome,Safari just support Chinese .
Cloud server XMEYE.NET can support multi languages
Q:How to set P2P
A:P2P website: “www .xmeye.net”
Kindly use the web browser IE to install ActiveX
(Only IE supports Multi languages,Chrome,Safari just support Chinese .)
Input your P2P ID,user name and password to login on and preview.
Access to the IPC through the website, only one screen can display images.
If there are multiple IPC, kindly use client software to manage(such as: CMS VMS SNVR)
Q:Does the camera support Motion Detect,FTP,Email alarm, RTSP?
1.How to set up motion detection?
Access to IPC via IE (or CMS software)-device configuration – alarm function – motion detection – on and save.
2, About FTP
You can upload both videos and pictures to FTP
Picture upload has no limitation,but if video file is too large, the video will only be uploaded when there is the alarm.
We would suggest both Sever-U and FileZilla FTP Server to upload the video or image.
3,About the Email alarm
Kindly use Email server which supports SMTP ( Hotmail ,Yahoo and Gmail can not support SMTP ) .
4, RTSP URL for VLC media Player
RTSP port: 554
rtsp: // (IP): (PORT) / user = (USER) & password = (PWD) & channel = (Channel) & stream = (Stream) .sdp? Real_stream
rtsp: //10.6.10.25: 554 / user = admin & password = & channel = 1 & stream = 0.sdp? Real_stream (stream = 0 primary stream 1 auxiliary stream)
If it is through the public network, and RTSP port open is required,the default port number is 554,or you can set it by yourself.
Q: What are the ports information of the cameras ?
A : ONVIF 2.0 Port 8899
RTSP Port 554
HTTP Port 80
Media Port 34567
E-mail default port 25
F-SLL protocol Port 465.
Q:Does the camera compatible with other manufacturers NVR?
A: Kindly check whether other manufacturer’s NVR supports onvif protocol.
Our camera’s onvif protocol is onvif Profile S, does not support HTTPS protocol;
Q:How to download the software and app?
A:IPC for Cloud
Cloud —> xmeye(dot)net/index
IPC for CMS Client
IP camera software —> www(dot)xiongmaitech(dot)com/en —> SUPPORT —> Complete software
IPC for XMEye APP
Note: users through the iPhone/ipod/iTunes into the App Store, search “xmeye” download and install.
Note: users through the Android Phone/Pod/into the Google Play store, search “xmeye” download and install.
