DC 5V Blue LED font b Electronic b font Hourglass DIY Kit Speed Adjustable Funny font
Click to see details

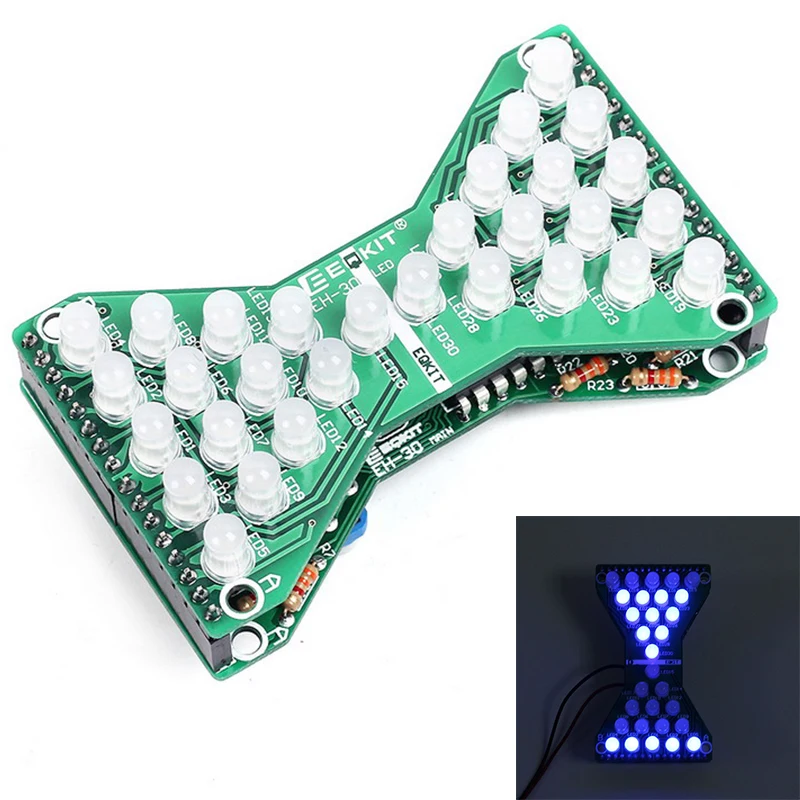

DC 5V Blue LED Electronic Hourglass DIY Kit Speed Adjustable Funny Electronic DIY Kits LED Double

DC 5V Blue LED Electronic Hourglass DIY Kit Speed Adjustable Funny Electronic DIY Kits LED Double Layer PCB Board DIY Electronic

98 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $3.40 / piece
Sale Price:  US $2.99 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:




1. Parameters:

No.

Parameter

Value

1

Name

Electronic hourglass

2

Model

EH-30

3

Working voltage

DC 3.3-5V

4

Shape size

74.4*43.7*24mm

5

Hourglass speed

Adjustable

6

Packing weight

34g/kit

7

LED color

Blue

2. Tools you need:

1>. Iron (30W)

2>. Solder wire

3>. Multimeter

4>. Tweezers

5>. Wire cutters

3. Precautions:

1>. Check part values & quantities against part list.

2>. Always meter resistors values before soldering.

3>. Understand all part polarities and orientations.

4. Component list:

No.

Name

Parameter

QTY

R1-R30. R32. R33

RES

3.3K

32

R31

RES

1M

1

C2

CAP

222P

1

C1

E-CAP

22uF

1

LED-LED30

LED

5mm

30

U1

IC

4069

1

U2. U3

IC

4015

2

SW1

Direction switch

SW300DA

1

S1

Power switch

6P Auto lock

1

VR1

ADJ-RES

100K

1

CN1-CN4

Connector

8P

4

CN5-CN8

Connector

8P

4

/

PCB

EH-30-MAIN

1

/

PCB

EH-30-LED

1
