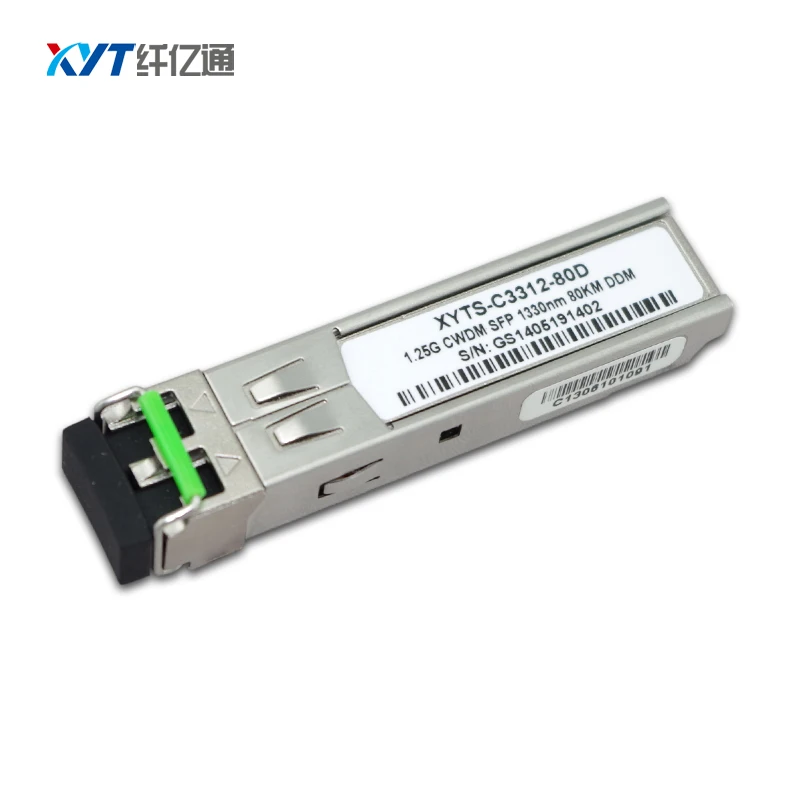

Free Shipping Optica Module Mini-GBIC 1.25Gb/s 1470nm 1430nm 1550nm 1290nm CWDM SFP 80km SFP Optic Module LC Connector

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $51.00 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:




1.25Gb/s CWDM SFP 80km Optic SFP Transceiver

PRODUCT FEATURES

l Up to 1.25Gb/s data links

l DFB laser transmitter and PIN photo-detector

l Up to 80km on 9/125µm SMF

l Hot-pluggable SFP footprint

l Duplex LC/UPC type pluggable optical interface

l Low power dissipation

l Metal enclosure, for lower EMI

l RoHS compliant and lead-free

l Single +3.3V power supply

l Support Digital Diagnostic Monitoring interface

l Compliant with SFF-8472

l Case operating temperature: 0°C to +70°

APPLICATIONS

l Switch to Switch Interface

l Gigabit Ethernet

l Switched Backplane Applications

l Router/Server Interface

l Other Optical Links

PRODUCT DESCRIPTION

SFP-1.25G-CWDM-80km-LC-DDM Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the DFB laser and the PIN photo-detector .The module data link up to 80KM in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

Specification of Transmitter

Symbol

Min.

Typ.

Max.

Unit

Note

Average Output Power

POUT

0

5

dBm

Note (1)

Extinction Ratio

ER

9

dB

Center Wavelength

λC

(1XX0)-λ

1XX0

(1XX0)+λ

nm

DFB Laser

Note (2)

Side Mode Suppression Ratio

SMSR

30

dB

Spectrum Bandwidth(-20dB)

σ

1

nm

Transmitter OFF Output Power

POff

-45

dBm

Differential Line Input Impedance

RIN

90

100

110

Ohm

Output Eye Mask

Compliant with IEEE802.3 z (class 1 laser safety)

Note (3)

Note (1): Measure at 2^7-1 NRZ PRBS pattern

Note (2): “XX” is: 27,29,31,33,35,37,39,41,43,45,47,49,51,53,55,57,59 and 61; “λ” is 7.5

Note (3): Transmitter eye mask definition

Specification of Receiver

Symbol

Min.

Typ.

Max.

Unit

Note

Input Optical Wavelength

λIN

1270

1610

nm

PIN-TIA

Receiver Sensitivity

PIN

-26

dBm

Note (1)

Input Saturation Power (Overload)

PSAT

-3

dBm

Los Of Signal Assert

PA

-26

dBm

Los Of Signal De-assert

PD

-38

dBm

Note (2)

LOS Hysteresis

PA-PD

0.5

2

6

dB

Note (1): Measured with Light source 1XX0 nm, ER=9dB; BER =<10^-12 @PRBS=2^7-1 NRZ , “XX” is: 27,29,31,33,35,37,39,41,43,45,47,49,51,53,55,57,59 and 61.

Note (2): When LOS de-asserted, the RX data+/- output is High-level (fixed)
