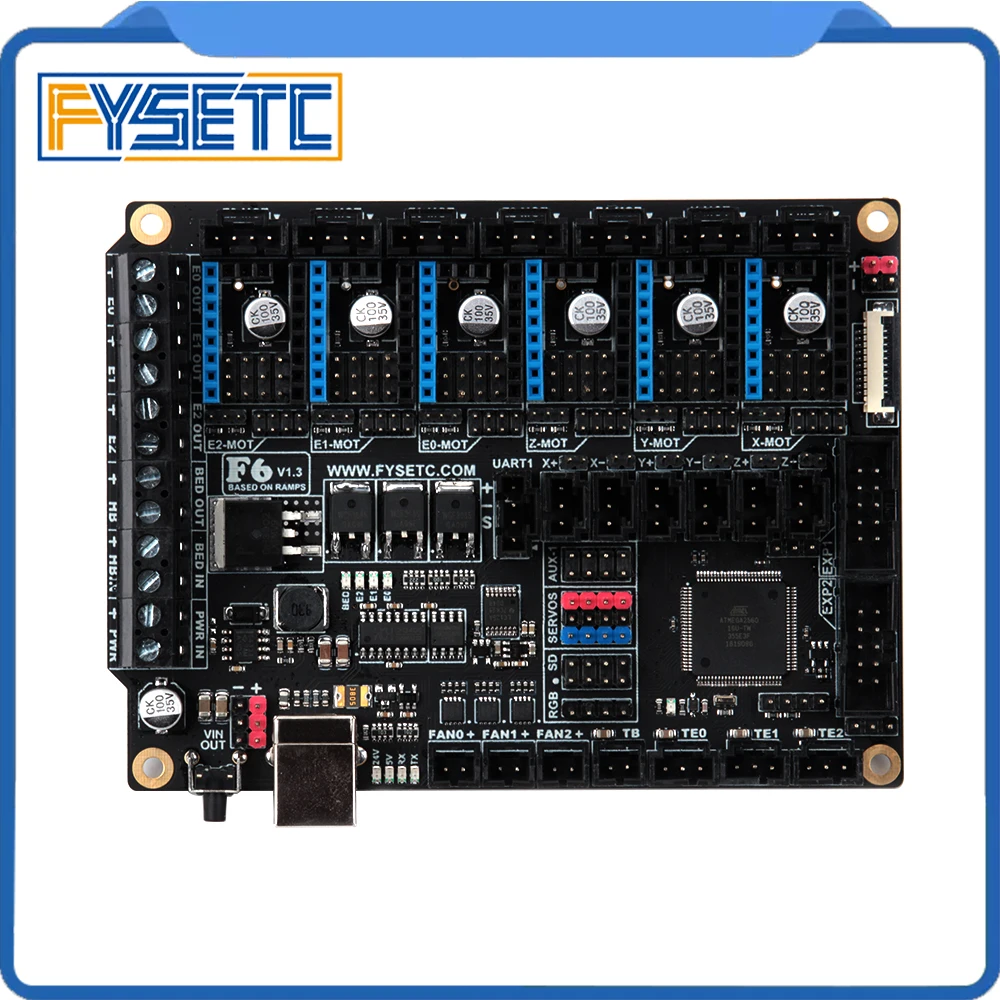

FYSETC F6 Board ALL-in-one Electronics Solution For 3D Printer CNC Devices Up to 6 Motor Drivers With easy Micro-steps setup Product Introduction The FYSETC F6 board is a feature rich all-in-one electronics solution for 3D printer and other CNC devices. It provides six drivers slots and supports Pololu pin compatible stepper drivers, especially the TMC drivers modules. There is no need for flying wires when using TMC2100, TMC2130 and TMC2208. and SPI,Usart and ther pin configer functions are available. Features • Compact size: 127.35mm x 92mm • fully integrated all in one solution: – Arduino 2560-R3 compatible (works with Sprinter, Repetier-Firmware, Marlin out of the box) – CH340 for high speed USB serial connection • UNIVERSAL POWER: – can be used with 9V-28V for motors / heated bed – integrated high precision power regulators (DC/DC): 5V 3A Max – power input auto selector for ATmega/logic (stand alone or power from USB) • Easy DISPLAY + SD-CARD connector: – RepRapDiscount SmartController compatible pin header on board – 10P FPC for Serial Touch display – 2X4 PinHeader Out for SD Card moudle • Up to 6 motor drivers with easy micro-steps setup and Supports TMC driver without flying wire • 10x PWM capable power mosfet outputs (1 for HotBed, 3 for Heat-End, 3 for fans, 3 for RGB LED strip) • The Hot-Bed is designed as a separate power input for maximum current • All unused pins are led out by pin headers • On Board External 2Mb SPI Flash • PCB： – 4 layer – 2OZ copper inner layers，1OZ out layers – High quality, High temperature FR4-TG130 PCB – Gold ENIG finishing If you have any questions about using the method,please refer to the link: https://www.thingiverse.com/thing:3112629 Package listing: 1pc F6 V1.3 1pc USB 1set Jumper 4pcs 2pin MX2.54 9pcs 3pin MX2.54 8pcs 4pin MX2.54
