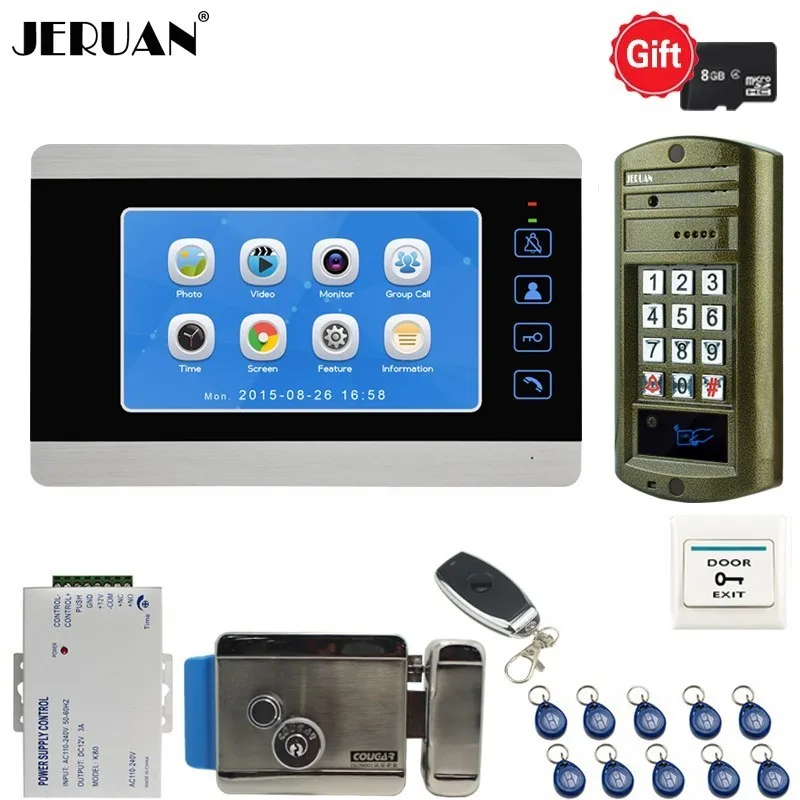

JERUAN 7 Inch Video Doorbell Door phone Voice Video Recording Intercom System kit With Metal Waterproof
Click to see details
JERUAN 7 Inch Video Doorbell Door phone Voice Video Recording Intercom System kit With Metal Waterproof

JERUAN 7 Inch Video Doorbell Door phone Voice/Video Recording Intercom System kit With Metal Waterproof Password Access Camera

60 % of buyers enjoyed this product!
Availability: in stock
TODAY'S DEAL Ends in: 04:36:18
Price:  US $296.00 / piece
Sale Price:  US $207.20 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller


JERUAN Home safety 7“ LCD Color Screen video door phone Record intercom system RFID Camera FREE SHIPPING 700 TVL HD Camera, Clearer Video! 7 Inch Color Screen! PhotoTaking / Video Recording FREE 8GB SD CARD

The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7″ high resolution color and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card. It is a good choice for your home security and intercom.


  • Fully waterpoof, support outdoor working.

  • Ring cancel function, do not disturb mode.

  • Brightness, chroma and volume adjustable

  • Hands-free intercommunication.

  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.

  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking etc.

  • Monitor unlock control;

  • Dual-way intercom;

  • Show outdoor image manually.

  • 10 melodies for ringing selection;

  • 7″ TFT digital color Screen;

  • Support Max. 32GB SD card

  • Video Recording and Photo Taking Function

  • Aluminum panel

FAQ – Frequently Asked Questions:

Q : Can I use CAT5 or CAT5E cables as extension cables?
A : Yes, you can.

Q : Can this support internal calls between indoor units?

A : Yes, can.

Power supply:This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply

  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.

If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:NOTE:The remote control without batteries

Electric Magentic lock: It is a High-performance 180kg Holding Force electric magnetic lock which suit for many access control system. This electric lock can meet your need perfectly!

  • Voltage: 12V DC

  • Mode: NC (locked whilst power supply is operating), fail safe mode

  • Application: wood, iron doors

  • Main body dimensions: 171 x 39.2 x 22mm

  • Pack includes: electric magnetic lock, installation diagrams

  • Construction: stainless steel.

  • Waterproof version, can work outside

  • Performance Testing: 1000000 times aging test

  • Safety function: Built-in voltage spike suppressor

  • Anti-Residual Magnesium Designed

  • Weight: 1.3kg

Electric Control Lock:This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode – (Locked while power is off);

  • Material: Stainless Steel;

  • Authority Certification: CE & MA Approved

  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1500g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm

Electric Strike lock: This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.

  • NC Mode – (Locked while supplied with power) Unlock Safe Mode.

  • If you need NO mode, please contact us before bidding.

  • Made of Stainless Steel

  • Performance Testing: 1000000 times aging test

  • Opening Mode: 90 degree swinging door

  • Authority Certification: CE & MA Approved

ELectric Drop Bolt lock:This Low Temperature Electric Bolt Lock is specially designed for high security applications. It is made of durable and high material which made our life more safe, power to lock with signal output, it is ideal for virtually any access control system.

  • Mode: NC (locked whilst power supply is operating)

  • Working voltage: 10-24VDC

  • Latest design, very low power consumption

  • Professional design, double current protection

  • Protection design, positive and negative poles alternate protection

  • It made of durable and high material

  • Professional installation, surge absorber inside

  • Low temperature design

  • It’s convenient for you to use

  • Size: 200mm x 34mm x 42mm

Electric Drop Bolt lock:

  • Voltage: 12V DC

  • Mode: NC

  • Application: wood door, metal door, security doors

  • Main body dimensions: 148 x 34 x 27mm

  • Delay: 0 second, 3 second, 6 second.

  • Lock type: magnetic sensor.

  • Current: start up: 1.2A, operating:0.25A

  • Construction:Aluminum material.

  • Performance Testing: 1000000 times aging test.

  • Weight: 0.8kg

Note: The cables are very easy to be found in your local market as they are international standard. We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound. The total length of the connection cables can NOT exceed 100 meters. If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

If you need to buy professional video doorbell wires, you can click on the picture below to buy

Indoor Unit Specification:

  • Screen size: 7”(16:9 display)

  • Resolution: digital:800(RGB)×480Pixel

  • Visual angle: up 50 degree, down 70 degree, left or right 70 degree

  • Brightness: 200cd/centiare

  • Ringtone: 10 chorded polyphonic ringtone

  • Sensitivity: 56db

  • Signal system: PAL/NTSC (optional)

  • Input voltage: AC 100V-240V ~ 50Hz/60Hz

  • Overall Power Consumption: ≤6W(400mA)

  • Stand-by Power Consumption: <1.1W

  • Power Adapter Specifications: DC 15V 1000-1500mA

  • Talk Time Delay: 120S±10%

  • Monitor Time Delay: 40S±10%

  • Effective distance: 200M(4×0.75mm⊃2;)

  • Operating Temperature :-20~+60 degree

  • Relative humidity: 10%~90%(KH)

  • Support:Photo Taking / Video Recording

  • nstallation: Wall mounted

  • Indoor unit installation method: wall-mounted type

Outdoor Unit Specification:

  • Infrared lamp lighting distance: approximate 4 meters

  • Gain control: auto

  • Resolution: 700 TVL

  • Lens: 2.3mm

  • Talk time delay: 120S±10%

  • Image transmission distance: approximate 200 meters

  • Visual angle: 92 degree

  • KW: <2W

  • Power: DC 15V (provided by the extension phone directly)

  • Camera : High definition and colorful CMOS/CCD(optional)

  • Outdoor infrared night vision function: 10 LUX infrared

  • Operating Temperature:-20~+60 degre

  • Outdoor unit installation method: wall-mounted type
