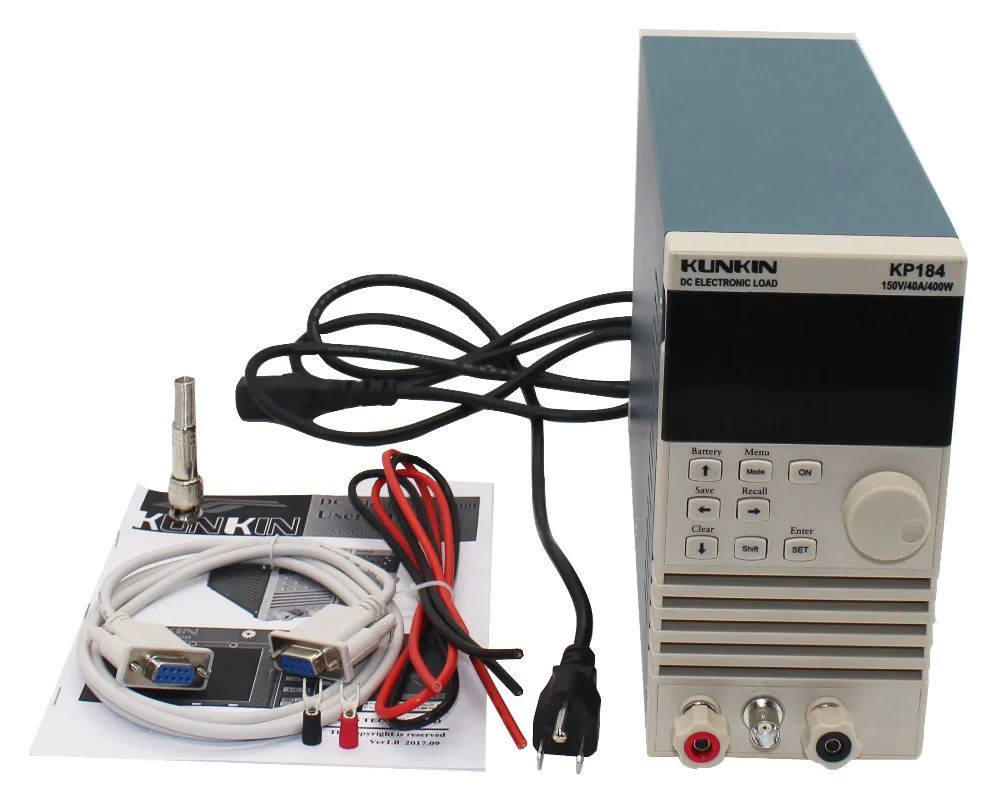

KP184 DC Electronic Load Battery capacity tester Internal resistance tester Power tester MODBUS RS485/232 400W 150V 40A

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $249.99 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:

Note:about the BNC interface function

pleas know the follow function of BNC before you use this Extended function

If the voltage measurement is selected as the remote measurement (VOLTAGE REMOTE SENSE) in the menu settings, the BNC connector on the front panel must draw two wires to the positive and negative terminals of the measured voltage, otherwise the voltage measurement and display There will be inaccuracies in the error, especially when the load is loaded.

To all my dear customers:

This DC Load support secondary software programming,we hope you will have the software yourself ;

if you do not have ,we can send it to you as a free gift,Software is only a gift ,not the goods ,so we hope you are professional for software using ;it is a free and development Software ;it is only for Win7 or IE system

Description:

KP182 series electronic load can be widely applied to product testing and ageing

in LED lighting, power source, charger and accumulator. The current mode can be

sued for simulating resistive load to discharge the battery and load the power source;

the voltage mode can be used for simulating capacitive load and load the charge, as

well as simulating the constant voltage of LED and load the power source. It is used

simply, adjusted conveniently and has perfect protection function. The performance

and function are unmatched by traditional slide wire resistor. If it is used for related

industries, it could enhance productivity and reduce the cost

KP182 series product has special function and advantages:

  1. It has four basic load modes like CC, CV, CW and CR .
  2. Input positive and negative transposition protection and give alarm
  3. Optimized heat radiation structure realizes high power density;
  4. Digital control mode, high precision and good stability
  5. Has overvoltage, overcurrent, overpower and overtemperature protection;
  6. Voltage far-end measuring function (remote sense)
  7. Auto testing function, external I/0 trigger signal, PASS, FAIL indication signal;
  8. 10KHz dynamic testing function;
  9. Battery capacity testing function;
  10. Testing of internal resistance of battery
  11. Overcurrent protection point/protection time testing function
  12. Fan PWM temperature control;
  13. Power source 110VAC/220VAC shift use
  14. RS485 and 232 communication interface, MODBUS protocol
  15. Synchronous operation function of multiple loaded devices online
  16. Upper computer software support with powerful function and friendly interface

Parameter:

  1. Voltage: AC 110V/220V ±10%,50±2Hz
  2. Power consumption: < 20 W
  3. Load voltage: DC 1 -150 V
  4. Load current: 0-40A
  5. Load power: 0-400W
  6. Measuring precision Current: ±0.05%+5mA
  7. Measuring Precision Voltage: ±0.05%+5mV
  8. Control precision Current: ±0.05%+5mA
  9. Control precision Voltage: ±0.05%+5mV
  10. Communication Mode:RS232/RS485
  11. Overvoltage: When the voltage is more than 152V,the load is turned off load
  12. Over temperature: 85℃
  13. Overpower: Single channel 410W
  14. Power supply input fuse 0.5
  15. Boundary size (mm) L×B×H: 300×90×190
  16. Weight:4.5kg

Include:

1 x KP184 DC Electronic Load
