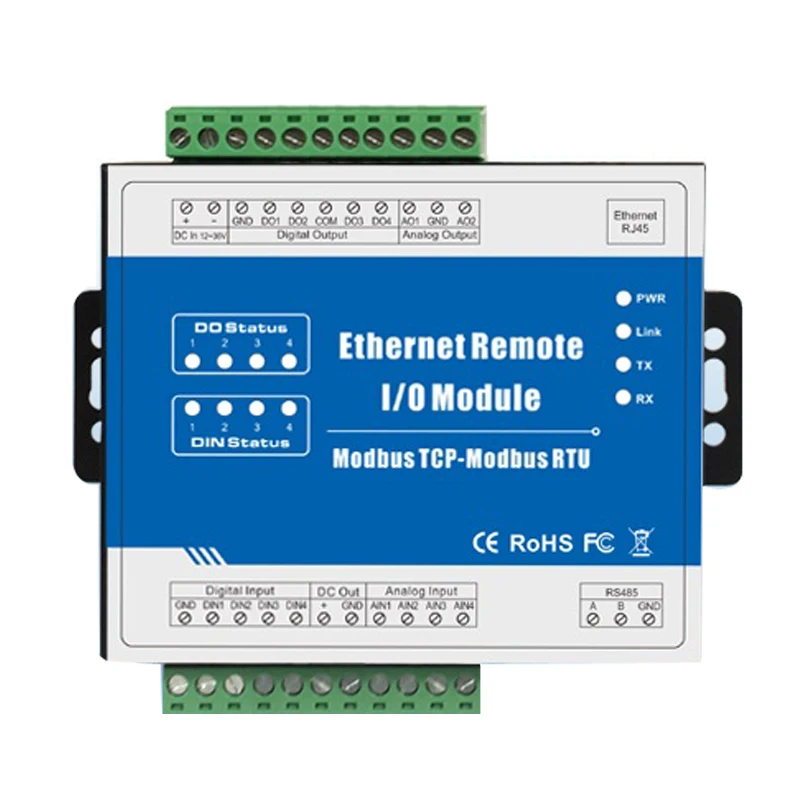

Modbus TCP Ethernet Remote IO Module (4DI+4DO+4AI+2AO) Built-in Watchdog Supports 10MHz High Speed Pulse Counter M120T Note: 1.The Model default DIN type is wet contact,optional :dry contact,the input type can not be changed after delivered,The DIN 1 default is high-speed count mode;it can be changed to low-speed count mode by open the shell and change the internal jumper,if required dry contact input,please note when ordering,if DIN 1 require high-speed pulse count mode then must be wet contact. 2.The DO default type is SINK,Optional is Relay,The outpute type can not be changed after delivered, 3.The DO1 supports high-speed pulse output;DO2 can be used to control the direction of the stepper motor, if require relay output please contact us,add 2 USD Each port,If DO1,DO2 used for high speed pulse output then must be Sink. The M120T Ethernet Remote I/O Module is an industrial class, isolated designed, high reliability, high stability and high precision data acquisition module, embedded 32-Bit High Performance Microprocessor MCU, Integrated 1 Industrial 10/100M adaptive Ethernet module inside. It provides multi I/O, supports standard Modbus TCP, can be intergraded into SCADA, OPC server, and other automation systems. It is design for working in the harsh industrial application environment, widely used in a variety of industrial automation, security monitoring system, automatically measurement and control system. The M120T Ethernet Remote I/O module provides a RS485 interface, through the RS485 bus, it can cascade Modbus RTU I/O devices or Modbus RTU meters, e.g.: a variety of digital input or digital outputs, analog inputs or outputs, thermal resistance IO module combination, save costs. At the same time, the Ethernet Remote I/O module has register mapping function, the cascade Modbus RTU I/O data are automatically collected to the mapping memory area, the Modbus TCP Client query without waiting then can get a quick response to meet the industrial timely requirements. The M120T Ethernet Remote I/O module provides 4 optical-isolated digital inputs, supports max. 10MHz high speed pulse counter, 4 isolated 12bits analog inputs, supports 0~5V,0~10V,4~20mA,0~20mA analog signal, 4 digital outputs, supports 10Hz~300KHz high speed pulse output or relay outputs, 2 channel 12bits analog outputs, supports 0~10VDC signal output. All of the I/O with high sampling frequency and special filtering strategy to ensure it’s reliable. 1. Embedded 32-Bit High Performance Microprocessor MCU, inbuilt watchdog; 2. Wide range power supply 24 ~ 36VDC with over voltage and phase-reversal protection; 3. Embedded Web server for configuration and management; 4. Integrated 10/100M adaptive Ethernet module, supports Modbus TCP protocol; 5. 4 optical isolated digital input, supports max. 10MHz high speed pulse counter; 6. 4 digital output or relay output, supports 10Hz~300KHz high speed pulse output; 7. 4 isolated analog input, 12-bit resolution, supports 0~20mA,4~20mA,0-5VDC, 0-10VDC; 8. 2 analog output, 12-bit resolution, supports 0-10VDC; 9. High sampling frequency and special filtering strategy to ensure reliability; 10. 1 RS485 Serial port, supports Modbus RTU/ASCII Master, can extend I/O modules; 11. Supports register mapping function and extend I/O inquiry strategy; 12. Provides 1 channel 24~36VDC power source output for external device, saving wiring cost; 13. LED instructions work status, with reset button to reset, easy on-site installation and commissioning; 14. Using metal shell, protection class IP30. Metal shell and system security isolation, especially suitable for industrial applications in the field; 1 x Ethernet Remote IO Module M120T Note:This version Digital Output type is Sink output ,if you want Relay output type,each Output need add 2 USD More.thanks
