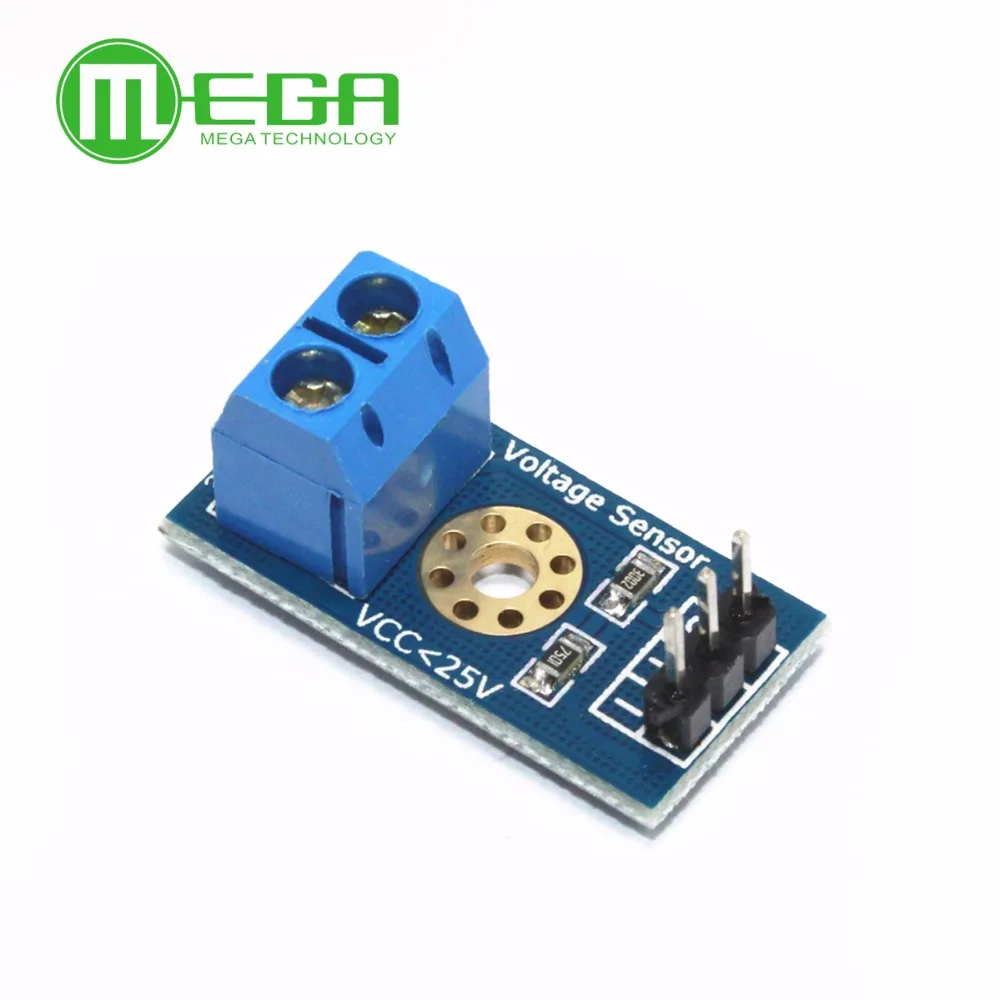

Standard Voltage Sensor Module Test Electronic Bricks For Robot For Arduino

100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $0.61 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:




Welcome to our Store

If you buy more quantity, Please contact us

Description:

100% brand new and high quality

Size: 25mm×13mm/0.98″×0.51″(approx)
This module is based on principle of resistive voltage divider design,can make the red terminal connector input voltage to 5 times smaller.FOR Arduino analog input voltages up to 5 v,the voltage detection module input voltage not greater than 5Vx5=25V(if using 3.3V systems, input voltage not greater than 3.3Vx5=16.5V). FOR Arduino AVR chips have 10-bit AD, so this module simulates a resolution of 0.00489V (5V/1023),so the minimum voltage of input voltage detection module is 0.00489Vx5=0.02445V. Voltage input range : DC0-25 V
Voltage detection range : DC0.02445 V-25 V
Voltage analog resolution : 0.00489 V
Output Interface : “+ ” connected 5/3.3V, “-” connected GND, “s” connected for Arduino AD pins
DC input interface : red terminal positive with VCC, negative with GND
By 3P connector, connect this module with the expansion of board for Arduino,not only makes it easier for you to detect voltage battery,can also use the IICLCD1602 LCD to display voltage. Reference Code: #include <Wire.h>
int val11;
int val2;

void setup()
{
pinMode(LED1,OUTPUT);
Serial.begin(9600);
Serial.println(“Emartee.Com”);
Serial.println(“Voltage: “);
Serial.print(“V”);
}
void loop()
{
float temp;
val11=analogRead(1);
temp=val11/4.092;
val11=(int)temp;//
val2=((val11%100)/10);
Serial.println(val2);
delay(1000);
}
