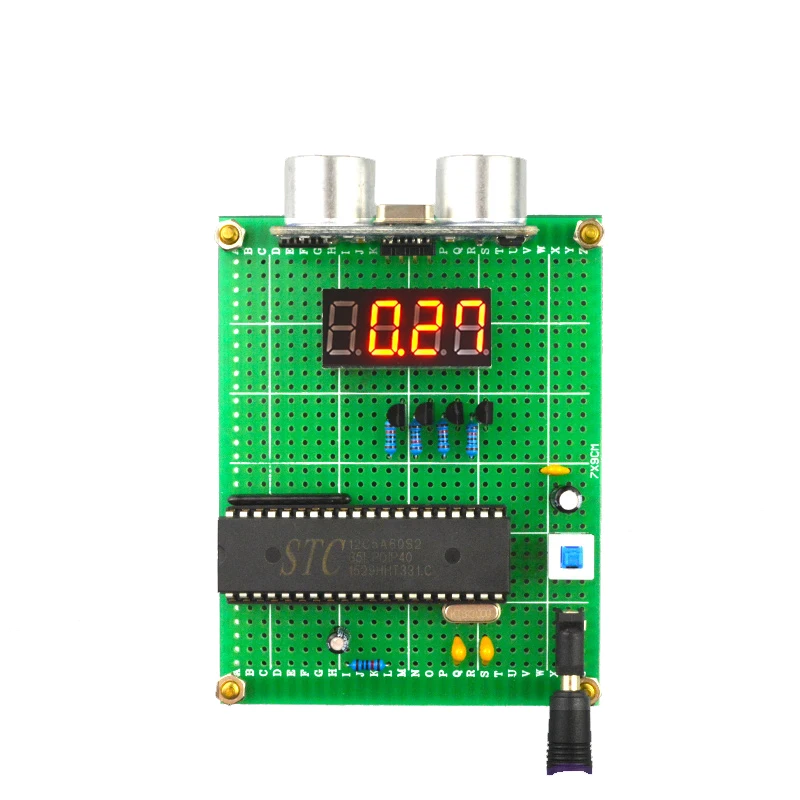

Ultrasonic range finder design DIY font b electronic b font course production STC89C51 52

Ultrasonic range finder design DIY electronic course production STC89C51/52

60 % of buyers enjoyed this product!
Availability: in stock
Price:  US $9.80 / piece
from AliExpress
45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Sort By

Top-rated Seller

Share:




DIY parts: In the form of parts, you need to weld by yourself finished product: Welding will be completed before the shipment, you do not need to solder.

MCU + minimum system + digital tube display module + digital tube driver module + ultrasonic ranging module + button module
1. Ultrasonic module ranging, measuring range: 0.02m-6.5m;
2. The four-in-one digital tube displays the measured distance in real time.
3. The characteristics of this design: wide measurement range, stable, easy to operate, can be used as a reversing radar for automobiles.
parameter:
1. Use voltage: DC5V
2. Quiescent current: less than 2mA
3. Level output: high 5V
4. Level output: bottom 0V
5. Sensing angle: no more than 15 degrees
6. Detection distance range: 2cm to 400cm (including 10~400cm 5~350cm, etc.)
How the module works:
1. Use IO trigger ranging to give a high level signal of at least 10us;
2. The module automatically sends 8 40khz square waves to automatically detect whether there is a signal return;
3. There is a signal return, a high level is output through the IO, and the high level duration is the time from the transmission to the return of the ultrasonic wave.
